✅ High-quality frame system, made of highly qualified steel.
✅ High-quality alloyed steel working bodies from traditional Italian producer.
✅ Double effect in one pass compared to other traditional sowing preparations.
✅ Unique rotor design.
✅ Production based on our own experience

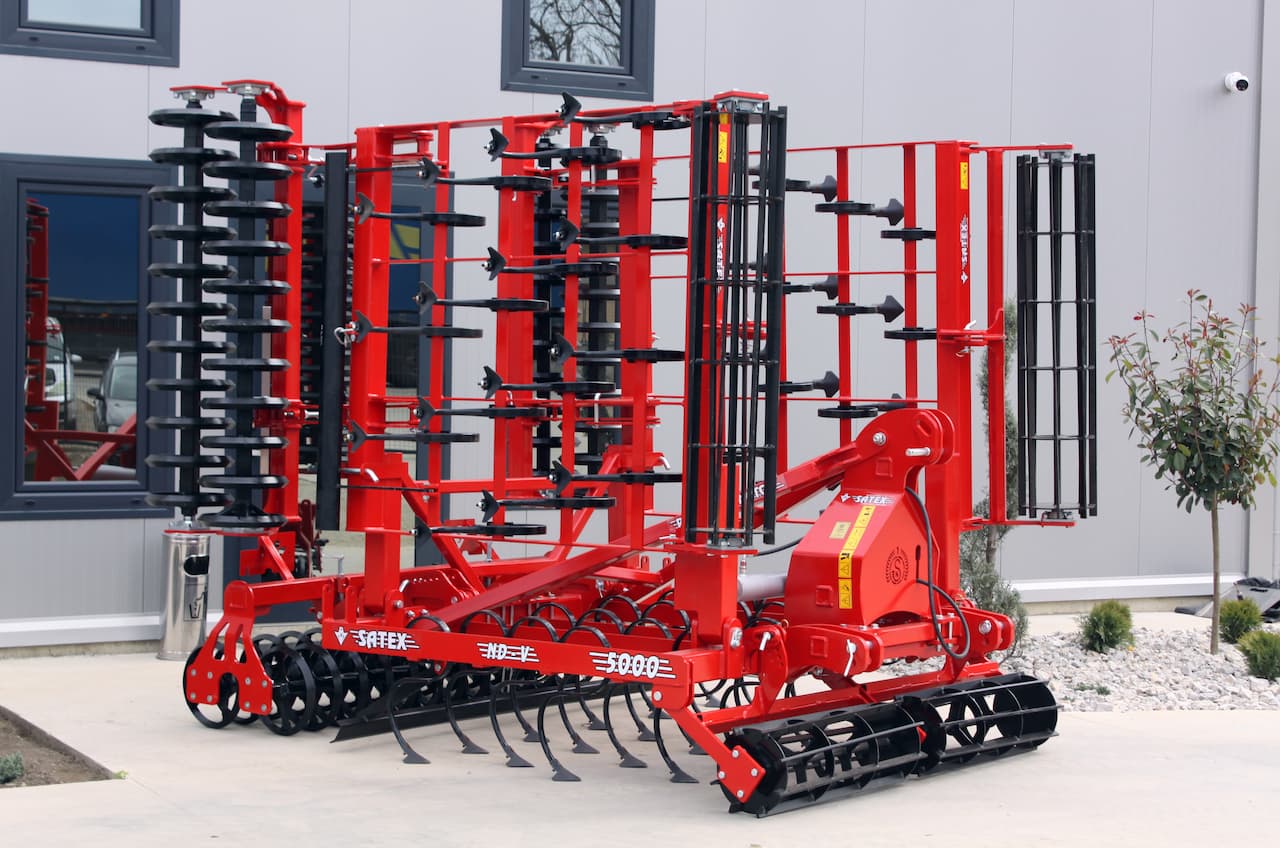

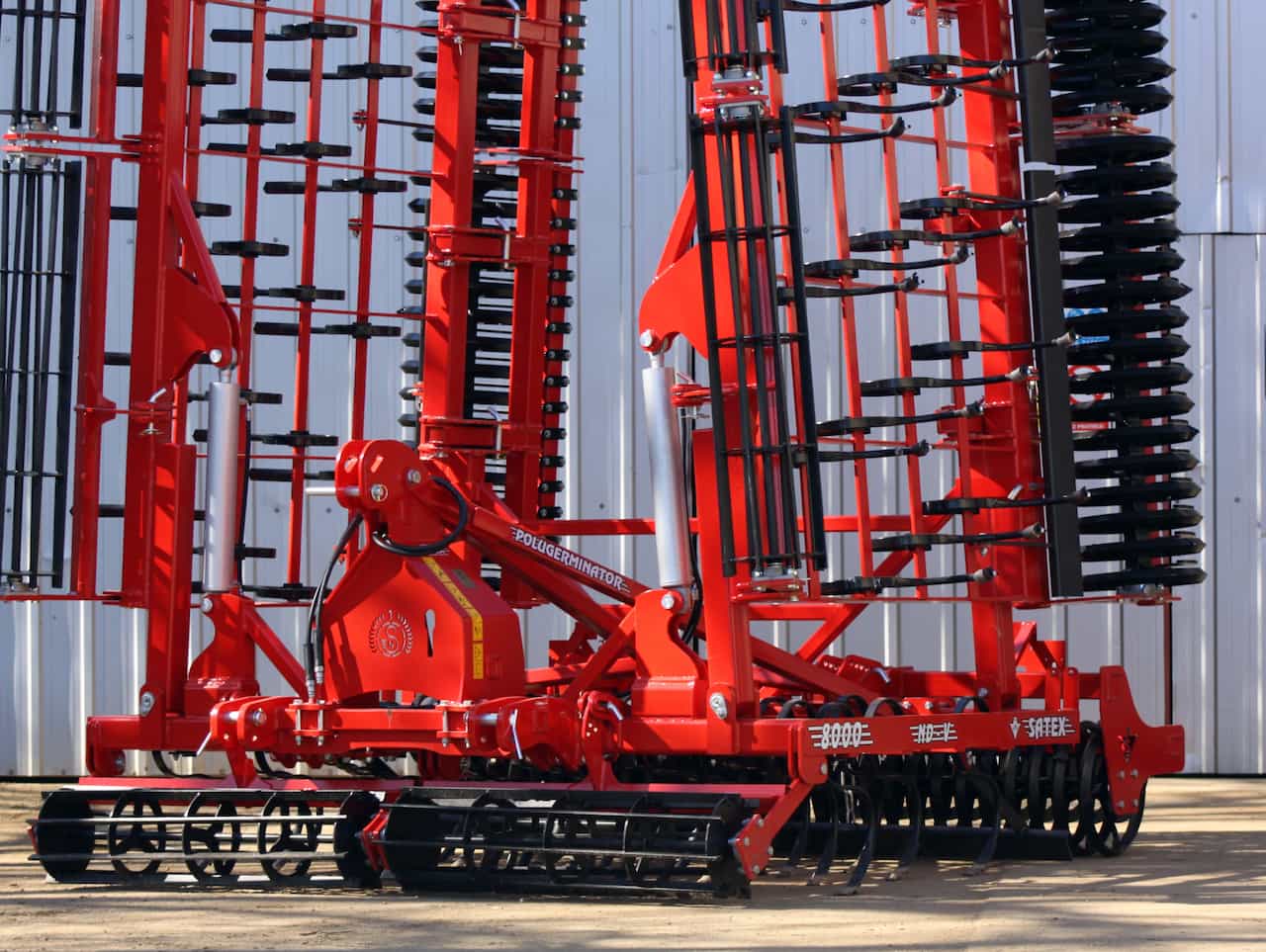

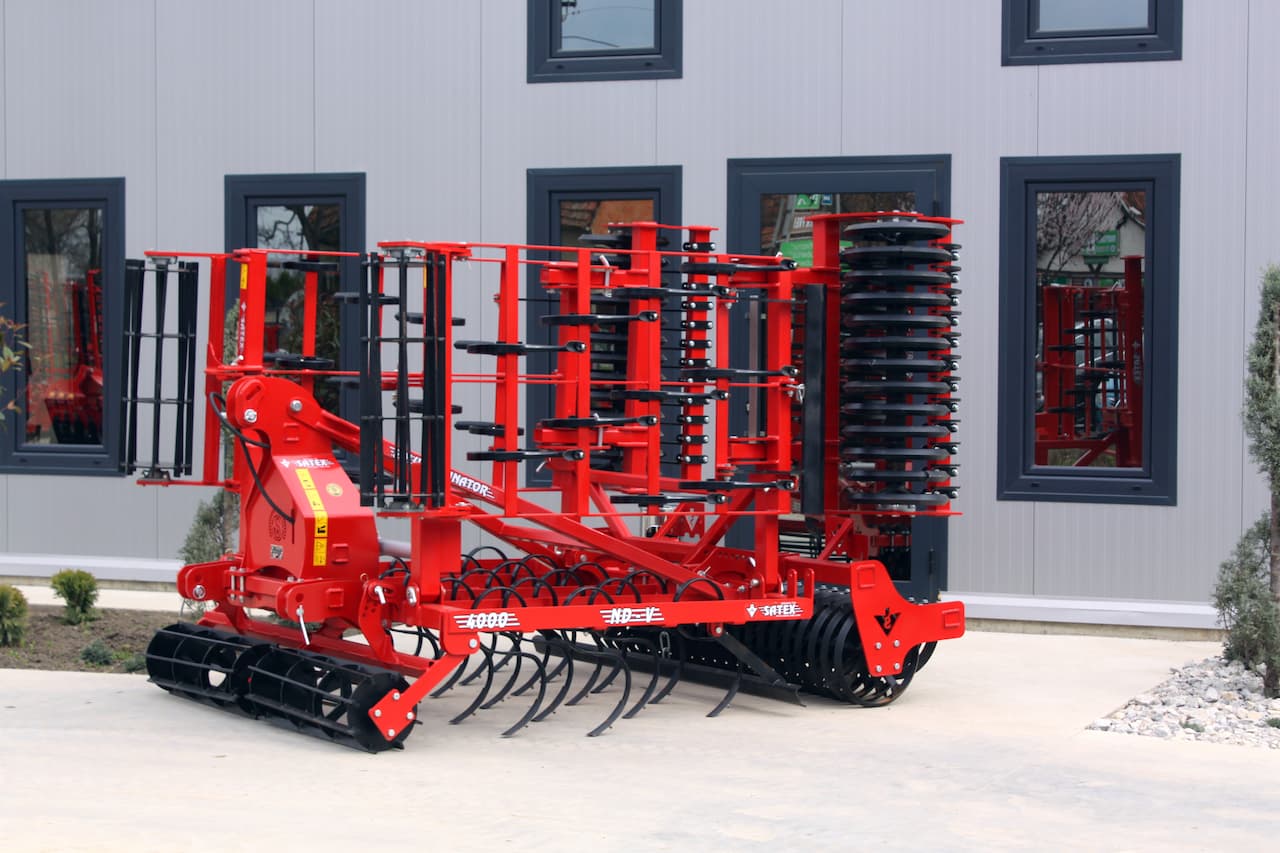

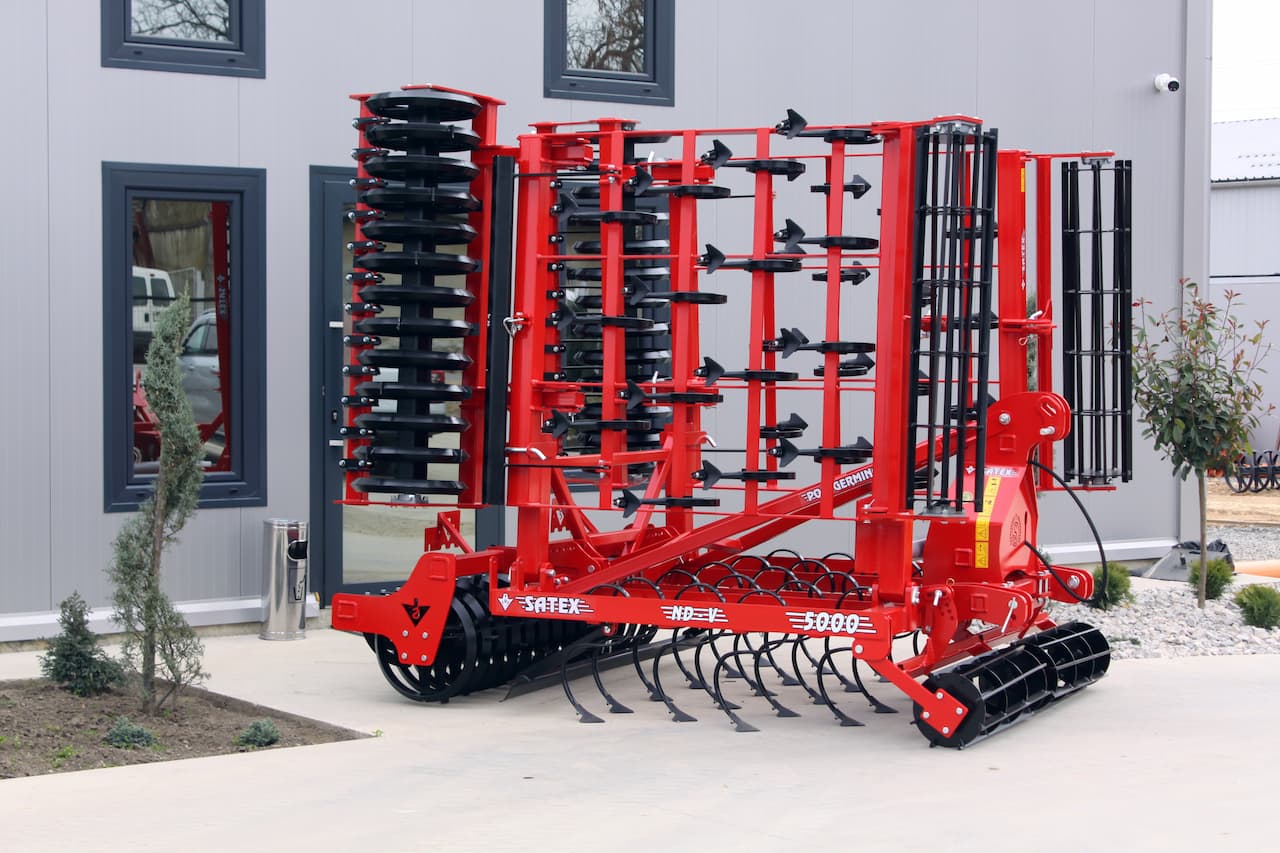

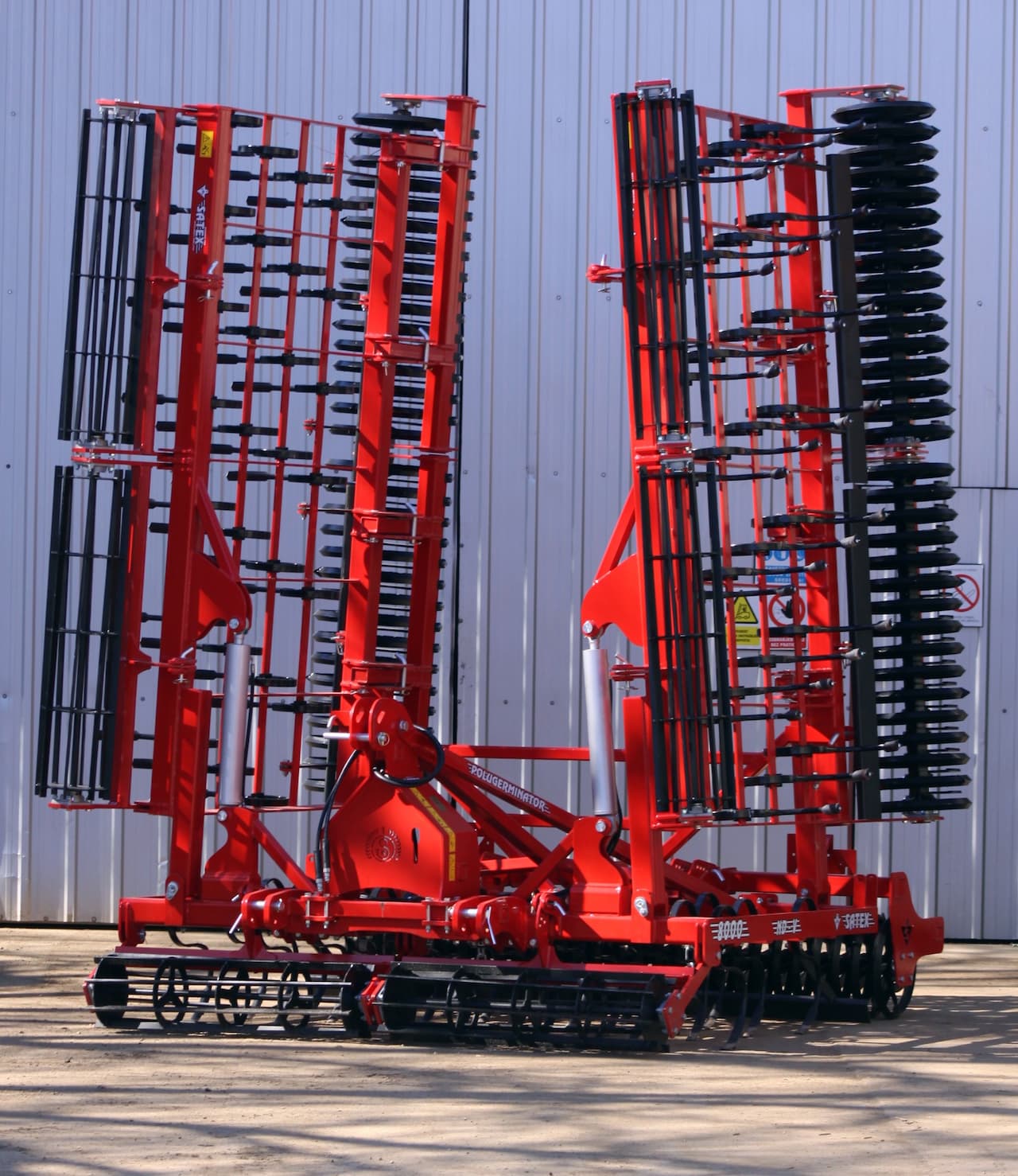

The Satex Semi-Cultivator is probably one of our best-known machines. Its popularity comes from a well-thought-out design that combines excellent ground following, precise working depth and intensive clod breaking – all achieved in a single pass.
The machine layout is both logical and efficient. At the front, a heavy-duty clod breaking roller prepares the soil for further cultivation. This is followed by four rows of tines mounted on S-springs, with interchangeable tips – either spear points or duckfoot shares, depending on the application. Behind the tines, a levelling board evens the surface, while the rear clod breaking roller completes the job by reconsolidating the soil.
One of the key advantages of the Satex Semi-Cultivator is that the machine rests on rollers both at the front and rear. During operation, the tractor does not need to support the implement with the hydraulic arms – the machine virtually glides over the soil. This design ensures outstanding depth control and perfect terrain following, even on uneven fields.
Semi-cultivators are primarily used for post-stubble operations and seedbed preparation. They loosen the upper soil layer, incorporate crop residues and create a uniform surface ready for sowing. They are especially valuable in reduced tillage systems, where fast, energy-efficient and soil-friendly cultivation is essential.
A good seedbed must be fine-crumbled, level and properly consolidated. The Satex Semi-Cultivator delivers exactly that: intensive clod breaking, consistent working depth and excellent surface finishing in one pass. The result is improved seed-to-soil contact, faster and more uniform emergence, and stronger early crop development.
| No. | Description | Power req. | No. of tines | Working width | Spacing | Working depth | Transport width | Weight ND-F | Weight ND-V |
|---|---|---|---|---|---|---|---|---|---|
| 1 | Half Germinator 2,5 | 60 HP | 25 | 2,5 m | 10 cm | 5-18 cm | 2,7 m | 500 | 560 |
| 2 | Half Germinator 3,0 | 75 HP | 30 | 3 m | 10 cm | 5-18 cm | 3,1 m | 580 | 640 |
| 3 | Half Germinator 3,5 | 90 HP | 35 | 3,5 m | 10 cm | 5-18 cm | 2,6 m | 840 | 1250 |
| 4 | Half Germinator 3,7 | 95 HP | 37 | 3,7 m | 10 cm | 5-18 cm | 2,6 m | 920 | 1320 |
| 5 | Half Germinator 4,0 | 100 HP | 40 | 4,0 m | 10 cm | 5-18 cm | 2,6 m | 1040 | 1400 |
| 6 | Half Germinator 4,5 | 110 HP | 45 | 4,5 m | 10 cm | 5-18 cm | 2,6 m | 1160 | 1500 |
| 7 | Half Germinator 5,0 | 120 HP | 50 | 5 m | 10 cm | 5-18 cm | 2,6 m | 1540 | 1840 |
| 8 | Half Germinator 5,5 | 135 HP | 55 | 5,5 m | 10 cm | 5-18 cm | 2,6 m | 1750 | 2000 |
| 9 | Half Germinator 6,0 | 140-150 HP | 60 | 6 m | 10 cm | 5-18 cm | 2,9 m | 1900 | 2220 |
| 10 | Half Germinator 6,5 | 150-165 HP | 65 | 6,5 m | 10 cm | 5-18 cm | 2,9 m | 2000 | 2380 |
| 11 | Half Germinator 7,0 | 170-180 HP | 70 | 7 m | 10 cm | 5-18 cm | 2,9 m | 2220 | 2480 |
| 12 | Half Germinator 7,5 | 180-190 HP | 75 | 7,5 m | 10 cm | 5-18 cm | 2,9 m | 2380 | 2560 |
| 13 | Half Germinator 8,0 | 190-220 HP | 80 | 8 m | 10 cm | 5-18 cm | 2,9 m | 2500 | 2700 |
| 14 | Half Germinator 10,0 | 220-240 HP | 100 | 10 m | 10 cm | 5-18 cm | 3,1 m | 5000 | 5200 |
| 15 | Half Germinator 12,0 | 240-280 HP | 120 | 12 m | 10 cm | 5-18 cm | 3,1 m | 5500 | 5700 |
