✅ Massive, uniquely designed, high-quality frame structure.
✅ Maintenance-free, long-life bearings.
✅ Due to the work bodies and disc plates with a unique angle of inclination, precise work is always carried out.
✅ It has been confirmed in several competitions that this machine is by far the best among its competitors.
✅ Thanks to the placement of the disc plates in an X shape, the machine can perform particularly stable and straight-line movement, without side deflection.
The Satex Short Disc Harrow range is the result of our own engineering and development, created to meet the demands of modern agriculture. Designed as a versatile, robust and efficient implement, it performs equally well in stubble cultivation, shallow tillage and seedbed preparation.

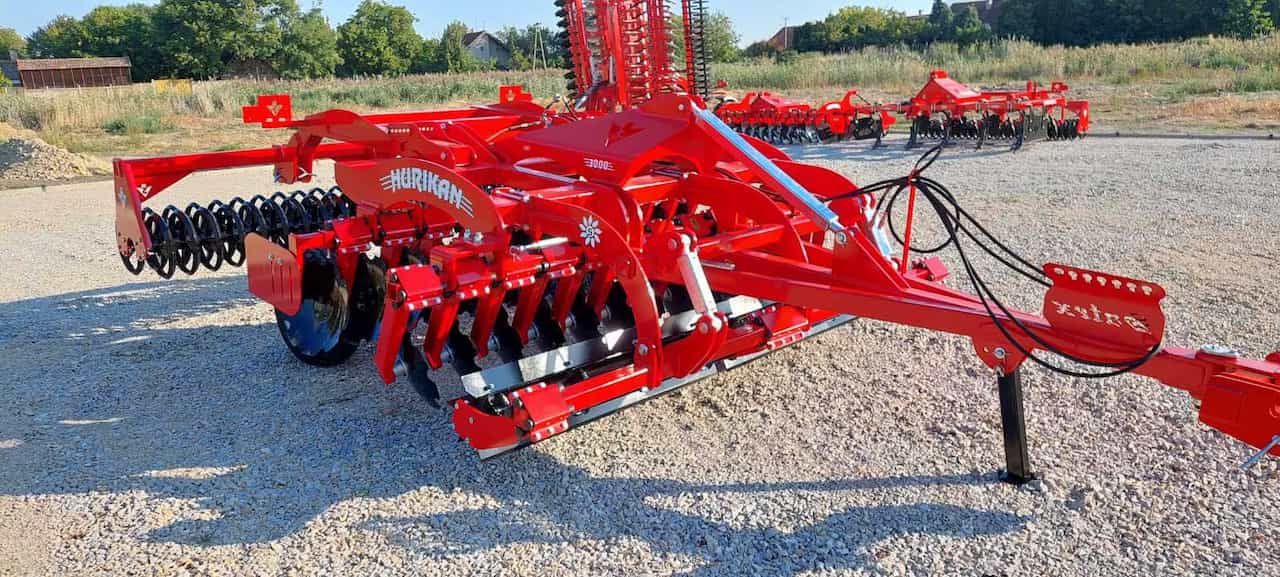

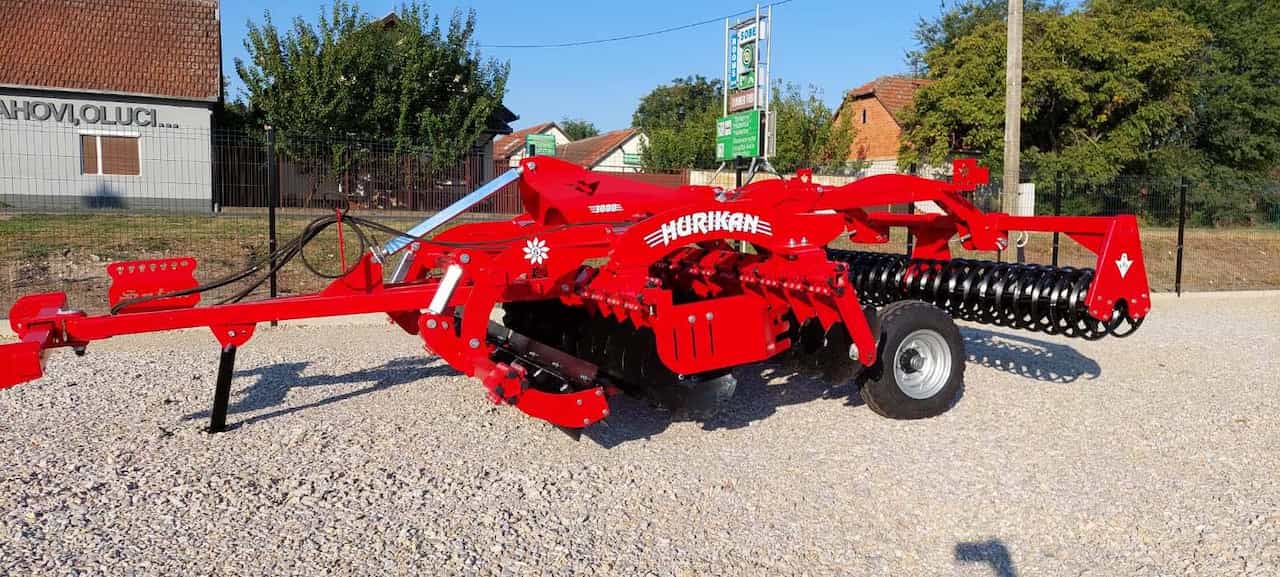

We offer three different models. The Replica is a lightweight mounted short disc harrow, ideal for smaller farms where low draft requirement and easy handling are essential. The Hurikan represents the classic short disc harrow concept, with disc blades on the front and rear beams working in opposite directions to ensure intensive residue mixing and a uniform soil surface.
Our latest innovation, the X Short Disc Harrow, features an X-shaped disc layout that completely eliminates unwanted lateral movement during operation, providing outstanding stability and precise tracking.
All disc blades are mounted on high-quality, fully sealed, maintenance-free bearings, ensuring long service life and reliable operation without regular servicing, even under demanding working conditions.
Our short disc harrows have proven themselves in numerous field tests, demonstrating performance that not only matches but often surpasses that of many Western competitors in terms of work quality and durability.
Short disc harrows play a crucial role in modern soil management.
They enable fast stubble cultivation, efficiently incorporate crop residues into the upper soil layer, accelerate decomposition and stimulate the germination of volunteer plants. Shallow cultivation helps conserve soil moisture, reduces erosion and improves overall soil structure.
| No. | Model | Power (stubble) | Power (plowing) | Width | Depth | Transp. w. | Weight | Discs | Speed |
|---|---|---|---|---|---|---|---|---|---|
| 01. | HURIKAN 2500 mounted | 100 HP | 100 HP | 2,5 m | 3-14 cm | 2,5 m | 1500 kg | 20 | 30 km/h |
| 02. | HURIKAN 3000 mounted | 120 HP | 120 HP | 3 m | 3-14 cm | 3 m | 1680 kg | 24 | 30 km/h |
| 03. | HURIKAN 3000 trailed | 110 HP | 120 HP | 3 m | 3-14 cm | 3 m | 2200 kg | 24 | 30 km/h |
| 04. | HURIKAN 3000 trailed + TOPPER | 110 HP | 120 HP | 3 m | 3-14 cm | 3 m | 2300 kg | 24 | 30 km/h |
| 05. | HURIKAN 4000 trailed, hydr. | 130 HP | 140 HP | 4 m | 3-14 cm | 3 m | 3600 kg | 32 | 30 km/h |
| 06. | HURIKAN 4000 trailed + topper | 130 HP | 140 HP | 4 m | 3-14 cm | 3 m | 3900 kg | 32 | 30 km/h |
| 07. | HURIKAN 5000 trailed, hydr. | 180 HP | 200 HP | 5 m | 3-14 cm | 3 m | 4100 kg | 40 | 30 km/h |
| 08. | HURIKAN 5000 trailed + topper | 180 HP | 200 HP | 5 m | 3-14 cm | 3 m | 4600 kg | 40 | 30 km/h |
| 09. | HURIKAN 6000 trailed, hydr. | 220 HP | 250 HP | 6 m | 3-14 cm | 3 m | 5200 kg | 48 | 30 km/h |
| 10. | HURIKAN 6000 trailed + topper | 220 HP | 250 HP | 6 m | 3-14 cm | 3 m | 5820 kg | 48 | 30 km/h |
| No. | Model | Power (stubble) | Power (plowing) | Width | Depth | Transp. w. | Weight | Discs | Speed |
|---|---|---|---|---|---|---|---|---|---|
| 01. | REPLICA 2500 mounted | 80 HP | 90 HP | 2,5 m | 3-14 cm | 2,8 m | 1100 kg | 20 | 30 km/h |
| 02. | REPLICA 3000 mounted | 90 HP | 100 HP | 3 m | 3-14 cm | 3,2 m | 1340 kg | 24 | 30 km/h |
| 03. | REPLICA 4000 mounted | 150 HP | 160 HP | 4 m | 3-14 cm | 3 m | 2320 kg | 32 | 30 km/h |
| No. | Model | Power (stubble) | Power (plowing) | Width | Depth | Transp. w. | Weight | Discs | Speed |
|---|---|---|---|---|---|---|---|---|---|
| 01. | HURIKAN X- 3 m mounted | 120 HP | 120 HP | 3 m | 3-14 cm | 3 m | 1700 kg | 24 | 30 km/h |
| 02. | HURIKAN X- 3 m trailed | 110 HP | 120 HP | 3 m | 3-14 cm | 3 m | 2500 kg | 24 | 30 km/h |
| 03. | HURIKAN X- 3 m trailed + TOPPER | 110 HP | 120 HP | 3 m | 3-14 cm | 3 m | 2700 kg | 24 | 30 km/h |
| 04. | HURIKAN X- 4 m trailed | 130 HP | 140 HP | 4 m | 3-14 cm | 3 m | 4100 kg | 32 | 30 km/h |
| 05. | HURIKAN X- 4 m + TOPPER | 130 HP | 140 HP | 4 m | 3-14 cm | 3 m | 4400 kg | 32 | 30 km/h |
| 06. | HURIKAN X- 5 m trailed | 180 HP | 200 HP | 5 m | 3-14 cm | 3 m | 4600 kg | 40 | 30 km/h |
| 07. | HURIKAN X- 5 m + TOPPER | 180 HP | 220 HP | 5 m | 3-14 cm | 3 m | 5100 kg | 40 | 30 km/h |
| 08. | HURIKAN X- 6 m trailed | 220 HP | 250 HP | 6 m | 3-14 cm | 3 m | 5700 kg | 48 | 30 km/h |
| 09. | HURIKAN X- 6 m + TOPPER | 220 HP | 250 HP | 6 m | 3-14 cm | 3 m | 6320 kg | 48 | 30 km/h |
